DIY Shaped Lights with Your Camera Bokeh

Updated on March 17, 2015

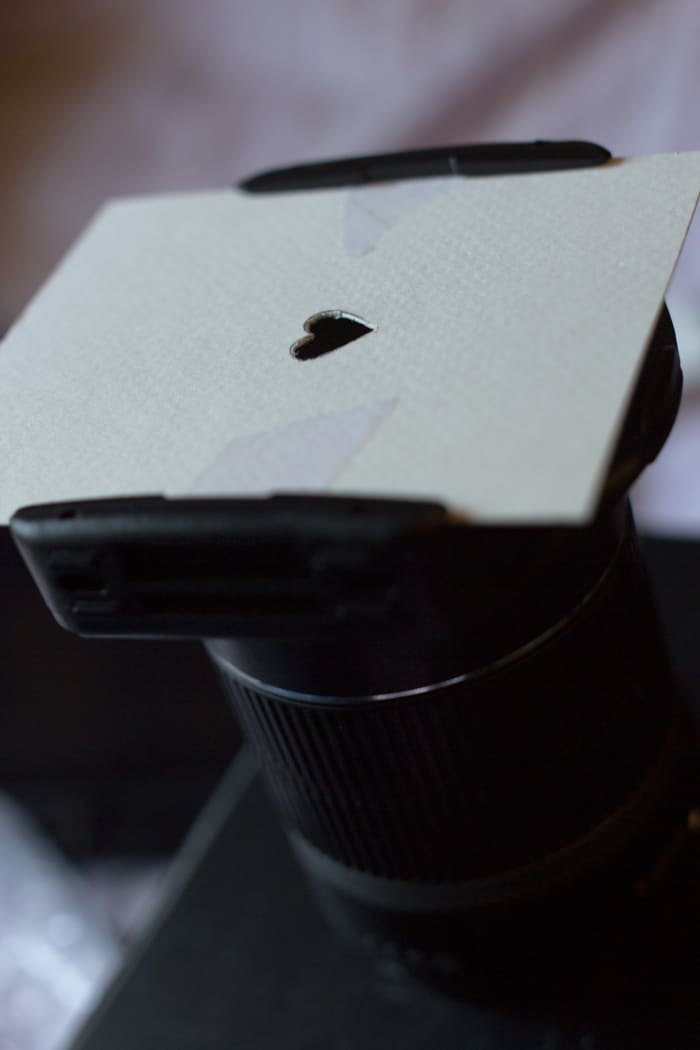

Create a changeable lens tube that changes the shape of your camera's bokeh.
Create a changeable lens tube that changes the shape of your camera's bokeh. | Source

Changing the shape of your camera's bokeh is a fun and well known camera trick. In non-photography terms, this basically changes the shape of the light blurs or out of focus light sources. You can even set up your photograph with an in focus subject in the foreground to really push the creative limits.

If you're looking for a way to add an extra touch to a music video or a photograph, creating shaped bokeh may just be what you're looking for.

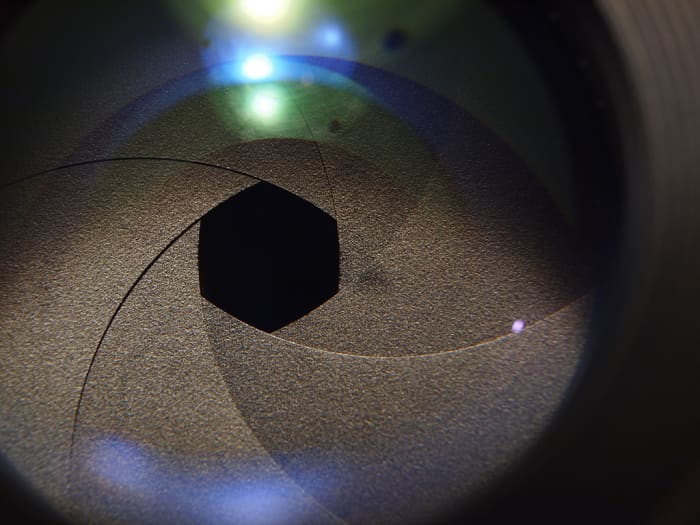

The camera iris is resposible for creating the circular or hexagonal shaped bokeh (depending on the lens).

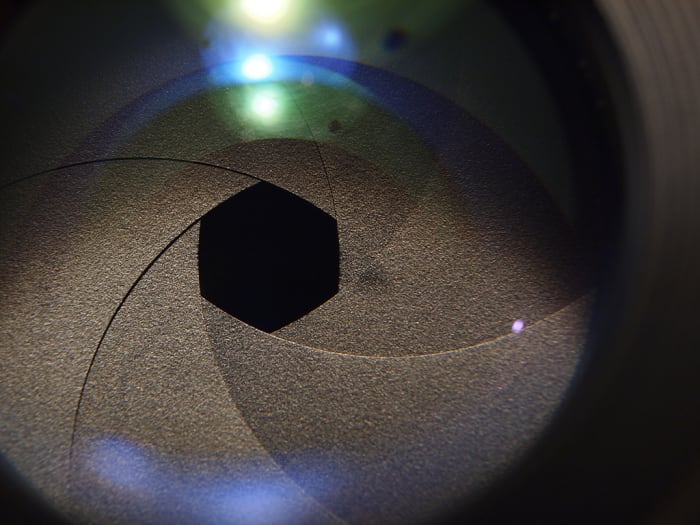

The camera iris is resposible for creating the circular or hexagonal shaped bokeh (depending on the lens). | Source

How Does it Work?

Normally, the shape of the bokeh comes from the iris inside of your camera. This is the little gear that opens and closes to let light in. If you're using a manual lens, this is your aperture wheel. If you turn your lens around and look through the front end, you can actually see the iris open and close as you turn the aperture wheel.

In order to change the shape of the bokeh, you'll place a piece of paper over your lens with a new iris (whatever shape you have cut out of the paper) and the light sources, when out of focus will take on that new shape. The reason why you want a low light lens is because the piece of paper you'll be putting in front of your camera will be small and will block a lot of the light getting into your camera, so in order to expose your image correctly, you'll need wide open aperture to begin with.

What Do You Need to Create the Shaped Bokeh?

In order to do this effect, you'll need a camera lens that has a low f-stop number. A DSLR camera is best, but there has been some success doing this trick on an iphone with a lens adaptor. Try to find a lens that has an f-stop around 1.8.

Shooting with a subject in the foreground opens up the possibilites of shaped bokeh.
Shooting with a subject in the foreground opens up the possibilites of shaped bokeh. | Source

What You'll Need

  1. DSLR camera with a low f-stop lens
  2. Pencil
  3. Scissors
  4. Tape
  5. Paper
  6. Christmas lights or lights to test out your shaped bokeh on

Rectangular strips are used to change out the shapes.
Rectangular strips are used to change out the shapes. | Source

Creating the Bokeh Shape for Your Camera

In order to create the different shapes for your bokeh, you'll need to draw and cut out the shapes you want from a piece of dark paper. You need it to either be dark enough that light can't get through it, or you need it to be thick enough for light to not penetrate through.

If you're not good at drawing, or if you want a really crisp looking shape, try finding those craft hole punchers. They come in all different shapes and will ensure you a professional shaped bokeh look. (I've included some to the side as an example.)

Click thumbnail to view full-size
Leave an untaped opening so you can slip in different rectangular slips with shapes on top.Changeable strips are inserted into your finished lens tube.Changeable strips are inserted into your finished lens tube.
Leave an untaped opening so you can slip in different rectangular slips with shapes on top.
Leave an untaped opening so you can slip in different rectangular slips with shapes on top. | Source
Changeable strips are inserted into your finished lens tube.
Changeable strips are inserted into your finished lens tube. | Source
Changeable strips are inserted into your finished lens tube.
Changeable strips are inserted into your finished lens tube. | Source

Changeable Bokeh Shape Lens Tube Instructions:

  1. Take your lens (with both lens caps on) and place your lens on it's side against a piece of paper. You want to mark the width from one end of lens to the other. *You could also measure the width of lens and then use that measurement.
  2. Using a pencil, mark the width of your lens and cut out a strip of paper that is long enough to be wrapped around your lens.
  3. Wrap your strip of paper around your lens and tape the end of the strip to itself to create a tube that fits over your lens. You want it to be snug.
  4. Flip your lens over and using your pencil draw around your tube. This will be used to cover the top of your lens tube.
  5. Cut out the circle your measured.
  6. Find the center of the circle you just cut out and cut out a small square shape, roughly 1 cm by 1cm, depending on how big your lens is you may have to increase the square a little.
  7. Tape your circle to the top of your tube, leaving two opposing sides untaped. You want to have room to insert a piece of paper from one end to the other so you can swap out shapes. (see pictures for clarification).
  8. Either measure the width of your untaped slit, or roughly guess how big it is, tt doesn't need to be exact, and cut out a long rectangle large enough to span the width of your lens and then some. Feel free to trace this and make more than one of them as you will be drawing and cutting out your shapes for your bokeh on these strips.
  9. Find the rough center of your rectangle and draw and cut out the shape you want your bokeh to be. A handy trick is to fold the rectangle in half and then cut out half of the shape you want (this will help make it more uniform.) You can also use craft hole punchers instead.
  10. Slip your rectangle into the untaped slits in your lens tube.
  11. Find some lights to test your shaped lens bokeh on! You're done.

*If you don't see your shape right away, be sure that when you're aiming your camera at lights that are out of focus.

Cokin and Lee filter holders all you to use shapes without having to create a lens tube.
Cokin and Lee filter holders all you to use shapes without having to create a lens tube. | Source

Cokin Filter Systems, Lee Filter Systems and Matte Boxes

If you have a Cokin system or any other system that allows you to use rectangular filters, you can simply use an index card cut out to the precise size of your holder. You can then cut out the shape you want in the middle of the card and position it in your holder over your lens.

This will easily let you swap out different designs without having to worry about attaching your card to your lens. Be sure to attach it close to the lens in order to cut out any light that may leak into your lens.

You may have to use thicker paper if you are having problems getting the shapes to work correctly.

Inspirational Photos from Flickr

Click thumbnail to view full-size
Source
Source
Source
Source
Source
Source
Source
Source
Source

Shaped Bokeh in Videos

Creating custom bokeh is not just for photographs. There are many musicians and artists alike that are using this camera trick to play around with their videos.

In order to proper light the scene after adding your bokeh card on top, you'll need to add a light source to your foreground subjects. This can easily be done by just adding an extra light to separate your subjects from the background or by increasing the distance between the foreground and background.

Prefer a Video to this Article?

Here's a video on how to make your very own lens changer. This includes a demonstration and an easy step-by-step procedure that will help you create your very own shaped bokeh!
