How to Retrofit Additional Shelving to a Built-in DVD Storage Unit

Arthur strives to balance aesthetics, functionality, and quality with costs when planning DIY projects in the home and garden.

retrofitting-additional-shelving-to-built-in-dvd-storage-unit

What the Original Build Was Like

Originally, when the house was built over 90 years ago, the space under the stairs was a pantry with access from the kitchen. A previous owner blocked off access from the kitchen and knocked through the brick wall into the living room to create a cubbyhole with an arched opening, and repurposed it as a drinks bar.

About 10 years ago I installed shelving in what was then a cubbyhole under the stairs, at the back of our living room, for our growing DVD and Blu-ray collection.

In the cubbyhole the two features installed by the previous owner, which we wanted to keep, was a built-in medieval style drinks cabinet tucked in the corner, right under the stairs, and a rather attractive mirrored wall picture featuring a watermill.

So in building the shelving, made from pine floorboards, I copied the style of the built-in drinks cabinet, and built the shelving around the mirrored wall picture.

Then a few years ago, when we did a major makeover of our living room I knocked down the rest of the brick wall under the stairs to open up the cubbyhole and create an alcove under the stairs.

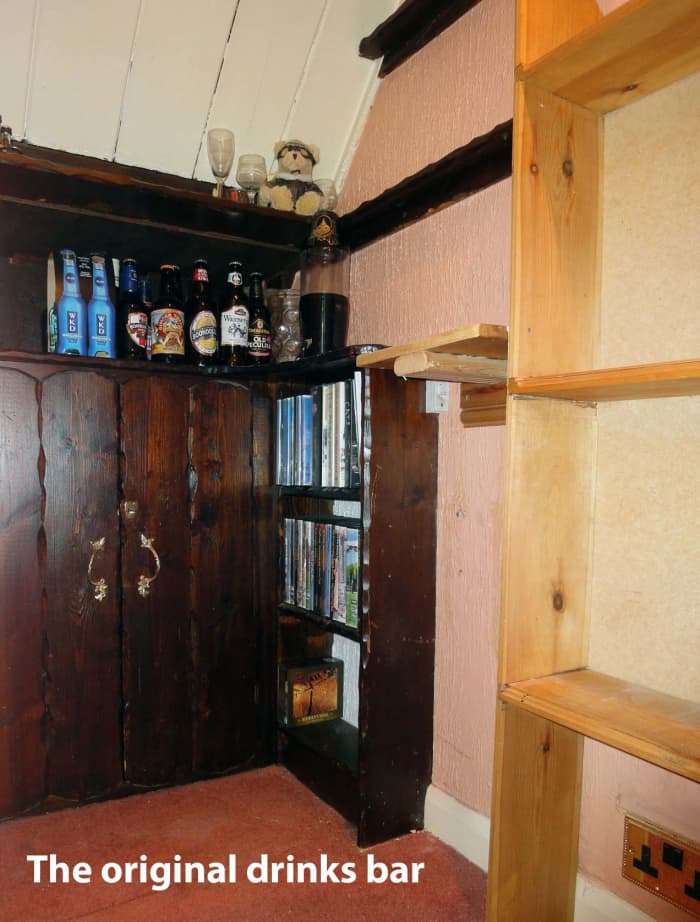

Original drinks bar tucked away in the corner of the alcove under the stairs (at the back of the living room), as it was a few years back; prior to me building the current DVD shelving to the right.

Original drinks bar tucked away in the corner of the alcove under the stairs (at the back of the living room), as it was a few years back; prior to me building the current DVD shelving to the right.

DVD and Blu-ray Overflow

Since initially installing the shelving in the alcove under the stairs, our DVD and Blu-ray collection has expanded by about a foot a year; predominantly because our son buys the Blu-ray box sets of all his favourite films and TV Series e.g. Game of Thrones.

Consequently the space I’d left open, to showcase the mirrored wall picture, became filled with DVDs and Blu-ray’s; hence the need to retrofit more shelving, to accommodate the expanding collection.

So below is my short step-by-step guide on how I retrofitted two additional shelves to accommodate the DVD and Blu-ray overflow.

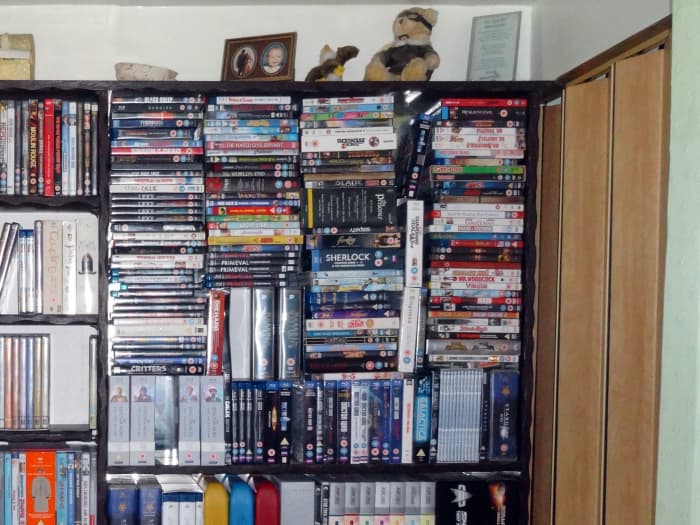

DVDs and Blu-ray discs stacked on top of each other in the top right hand corner, hence the need for additional shelving.

DVDs and Blu-ray discs stacked on top of each other in the top right hand corner, hence the need for additional shelving.

#1: Design & Planning

I couldn’t just cut out two planks of wood and stick them up because the two main considerations were:-

  1. The new shelving needed to match the existing in colour and design, and
  2. I needed to be careful in not breaking the glass mirror in the process of fitting the shelves.

With regards to the first point, the wood on the original drinks bar had been hewed (in medieval style), and in building the original shelving I replicated that style with a jigsaw. So I would use the same technique I used last time to replicate the style in the new shelving.

Last time I colour matched using Jacobean walnut wood stain; which was a near perfect match to the original. However, not having any Jacobean walnut wood stain left, and not wishing to fork out the expense of buying a new pot just for a couple of shelves, I opted to use Rosewood instead; which although a bit more reddish (not so dark) was still a reasonably good match.

As regards the second issue, after sitting down with a coffee (for a think) the strategy I devised for fitting the shelves, with no risk to cracking the mirror, was:-

  • Use bespoke spacers to support the shelves, and shelf supports, at the correct height (and level), while fitting.
  • Fit shelf supports on the right-hand side, gluing and screwing them in place; with the two screw holes near the front, well away from the glass, and
  • Screw the shelves in place on the other side, where I had access.

The reason for using shelf supports on the right-hand side was because of restricted access.

Having decided on the approach I would use, I then made and fitted the shelves as described below.

#2: Measuring & Cutting

Using the principle of measure twice and cut once, to minimise risk of error, and using pine floorboards to make the shelves:-

  • Accurately measure the width of the gap, where the shelves are to be fitted.
  • Carefully measure and mark that distance on the plank of wood with a tape measure, square and pencil.
  • Cut the wood to length.

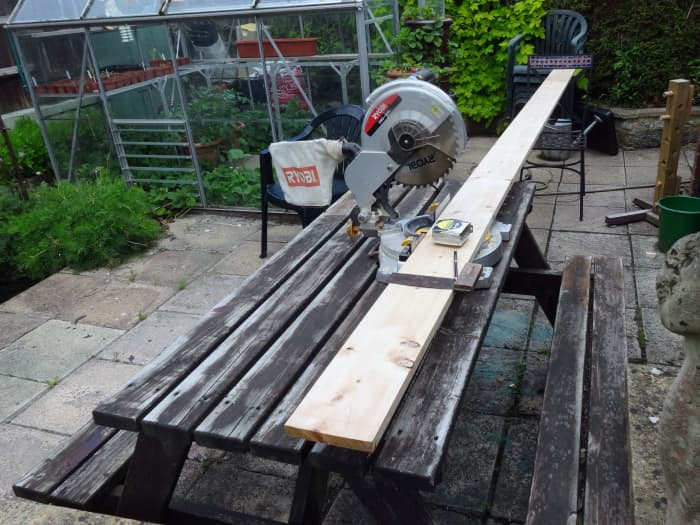

Using tape measure, square and pencil to mark the wood, to cut to correct length with a mitre saw.

Using tape measure, square and pencil to mark the wood, to cut to correct length with a mitre saw.

#3: Hewing the Wood

In medieval times, before the advent of saws, wooden beams were shaped with an axe, which gives a very distinctive irregular look.

The previous owner had shaped the edges of his built-in drinks bar with a hewing effect, and when I built the DVD shelving I copied that effect to match the style of the shelving with the drinks cabinet.

However, trying to shape the edges of a shelf with an axe, to give a hewed effect, isn’t easy.

So the first time round I emulated the effect by using an electric jigsaw by running it along the edge of the wood at a 30 to 45 degree angle in a wave like action; and then repeated the process on the underside. Therefore I used the same technique to create a hewed effect on the two shelves I was making.

Once I’d hewed the wood to shape I gave the new shelves a quick sanding with an orbital sander and wiped them over with white spirit to clean them of sawdust.

#4: Wood Staining and Polishing New Shelves

With the new shelves hewed to shape and cleaned of sawdust with white spirit:

  • I applied two coats of a wood stain to closely match the original shelves; leaving a couple of hours between each coat to dry.
  • After the second coat was dry I quickly hand sanded the shelves smooth, and wiped them clean of dust with white spirit, and left to dry.
  • After another half hour I applied the third coat of wood stain and left overnight to dry.
  • The following day, I generously rubbed beeswax into the shelves, working in the direction of the wood grain, and left it for 15 minutes before rubbing the wax to a shine.

In parallel, I also wood stained and polished the two shelf supports, which I quickly made while I was waiting for the first application of wood stain on the shelves to dry.

I always use furniture polish containing beeswax rather than silicone, because silicone is an oil and not a wax e.g. the wax is long lasting, durable and protects the wood, while the oil isn’t and unlike the wax, attracts dust; so with furniture polishing containing silicone oil you’re forever re-polishing.

#5: Making the Shelf Supports

While waiting for the first coat of wood stain on the two new shelves to dry I quickly recycled a piece of old beading, salvaged from the surround of our old windows when we upgraded our double glazed windows a few years ago.

To make the two shelves supports:-

  • I measured and marked out the wood, with a tape measure, square and pencil.
  • Cut them to length with a mitre saw.
  • Drilled the two pilot holes, for screwing, in each support.
  • Then wood stained and polished them with beeswax, along with the two shelves.

#6: Making the Temporary Spacers

The purpose of the temporary spacers is to:-

  • Ensure the new shelves are fitted at the correct height and
  • Temporarily support each shelf while it’s being fitted.

The advantages of using the spacers are:-

  • A simple and accurate method of ensuring the new shelves, and shelf supports, are fitted at the correct height without struggling to hold the shelves in place by hand, while also trying to keep them level with a spirit level and mark off on the side support with a pencil where the shelf should be fitted, and then
  • Not having to struggle with three hands (which I don’t have) to screw the shelves in place, while at the same time trying to hold them in place and keep them level.

I used a piece of scrap 4mm (8th inch) plywood to make the spacers, as follows:-

  • Marked and cut one piece of plywood to the length that equalled the height of the gap between two shelves, and
  • Marked and cut a second piece of plywood to the same length, less the height of the shelf supports that I would be using on one side of the shelves.

#7: Final Fit

With the new shelves, shelf supports and temporary spacers completed, it was time to fit the shelves, as follows:

  • Remove the DVD and Blu-ray discs from the area where the new shelves were to be fitted; and from the adjacent two shelves where I would need the space for screwing the shelves in place.
  • Also temporarily remove one of the adjacent shelves; for better access.
  • Using the shorter of the two temporary spacers to support the shelf support on one side while I glued and screwed it in place.
  • Then using the other temporary spacer to support the first shelf while that was screwed in place.
  • Finally, repeating the above two steps to fit the second shelf in place.

With both new shelves in place it was then a matter of putting all the DVDs and Blu-ray discs back in place.

The two new shelves used to accommodate the DVD and Blu-ray discs overflow.

The two new shelves used to accommodate the DVD and Blu-ray discs overflow.
